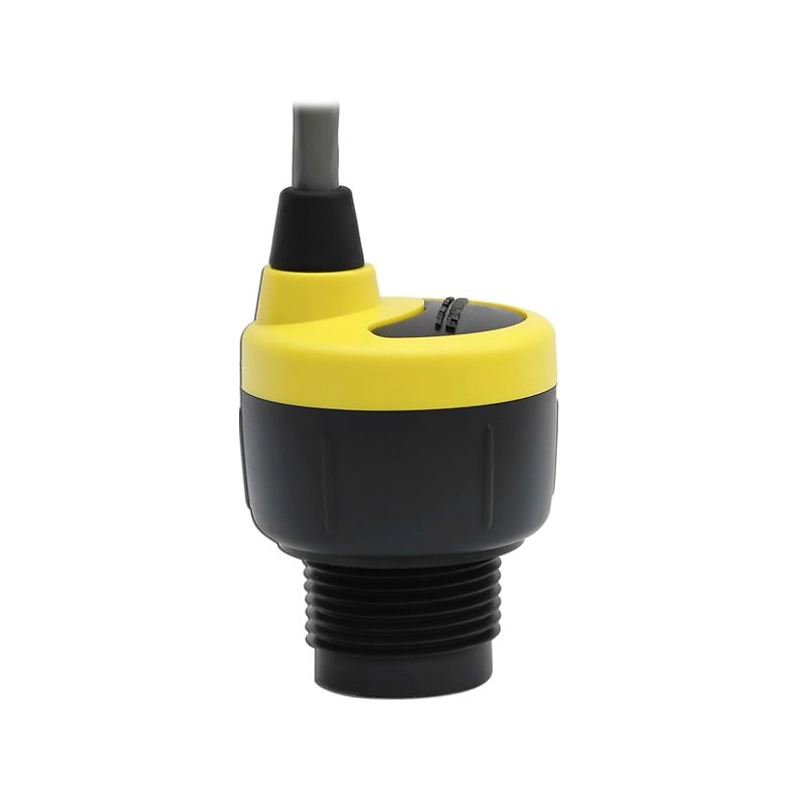

The Flowline EchoPod DL14 Ultrasonic Liquid Level Sensor measures liquid levels non-contact up to 1.25 m, with 4–20 mA output and four programmable relays.
| Measurement Range | Up to 49.2 in (1.25 m), non-contact |
|---|---|
| Output | 4–20 mA, two-wire |
| Relays | 4 programmable SPST relays; each configurable for fill, empty or alarm logic |
| Beam Width | 2 in (5 cm) |
| Dead Band | 2 in (5 cm) |
| Transducer Material | PVDF |
| Enclosure | Rugged polycarbonate |
| Temperature Compensation | Automatic |
| Configuration | WebCal® software via USB adapter |
The Flowline EchoPod DL14 combines continuous level measurement with integrated relay control, suited to small-tank pump and alarm automation:
Hinco Instruments is your authorised Flowline distributor in Perth, WA. Contact us for pricing, availability, and technical support.
