The Flowline EchoPod DL34 Ultrasonic Level Transmitter measures liquid levels up to 5.5 m with 4–20 mA output and four programmable relays, ideal for bulk tanks and corrosive environments.

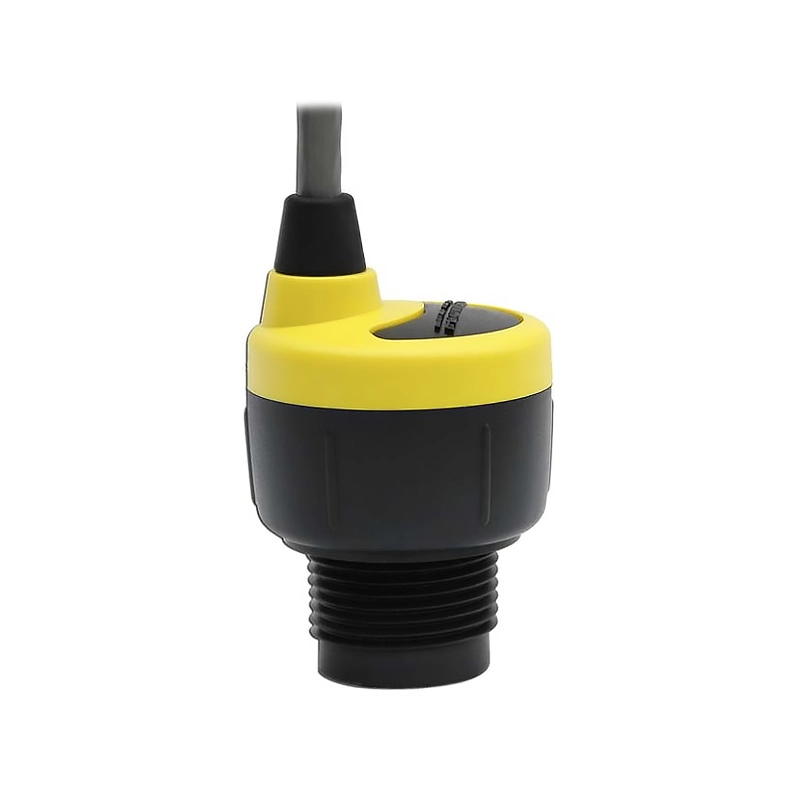

The Flowline EchoPod DL34 Ultrasonic Level Transmitter delivers continuous non-contact liquid level measurement up to 18.0 ft (5.5 m). It provides a 4–20 mA two-wire output and features four programmable SPST relays for pump, valve, or alarm control. Designed for bulk tank applications, it has a narrow 3-inch beam width and a short 8-inch dead band. The PVDF transducer and 6P polycarbonate enclosure resist corrosion, while automatic temperature compensation ensures accuracy in varying conditions. Configuration is quick and simple using WebCal® software with a USB adapter.
| Measurement Range | Up to 18.0 ft (5.5 m), non-contact |
|---|---|
| Output | 4–20 mA, two-wire |
| Relays | 4 programmable SPST relays for pump, valve or alarm control |
| Beam Width | 3 in (7.6 cm) |
| Dead Band | 8 in (20 cm) |
| Transducer Material | Corrosion-resistant PVDF |
| Enclosure | Type 6P polycarbonate |
| Temperature Compensation | Automatic |
| Configuration | WebCal® software via USB adapter |
The Flowline EchoPod DL34 is designed for bulk tank level measurement and control up to 5.5 m:
Hinco Instruments is your authorised Flowline distributor in Perth, WA. Contact us for pricing, availability, and technical support.
