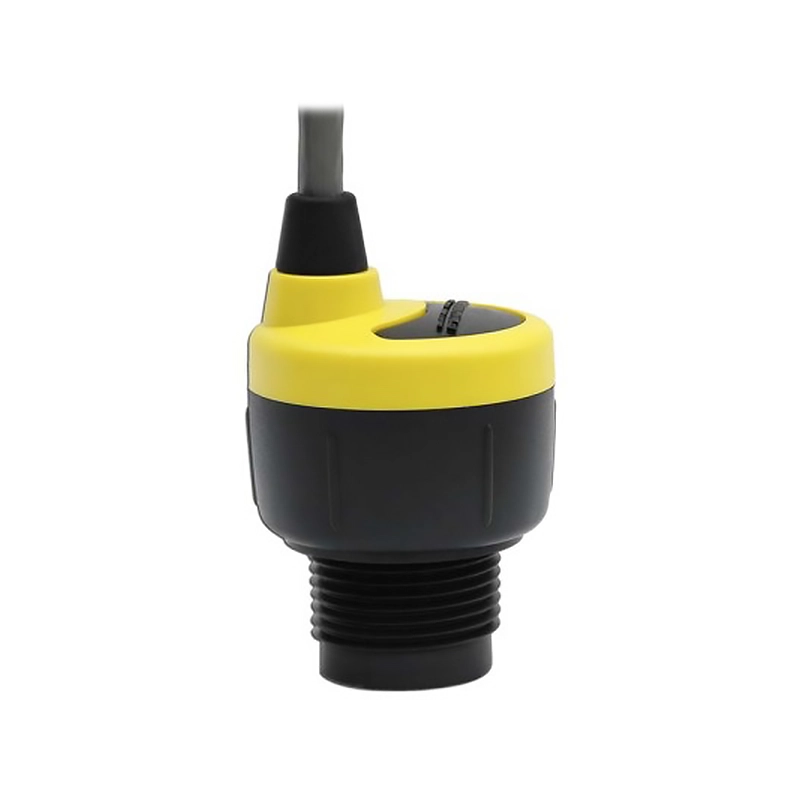

The Flowline EchoPod DL24 Ultrasonic Liquid Level Transmitter provides non-contact level sensing up to 3 m, with 4–20 mA output and four configurable relays.
| Measurement Range | Up to 9.8 ft (3 m), non-contact |
|---|---|
| Output | 4–20 mA, two-wire |
| Relays | 4 programmable relays; fill, empty or alarm logic per relay |
| Beam Width | 2 in (5 cm) |
| Dead Band | 4 in (10 cm) |
| Transducer Material | Corrosion-resistant PVDF |
| Enclosure | Tough polycarbonate |
| Temperature Compensation | Automatic |
| Configuration | WebCal® software via USB Fob adapter |
The Flowline EchoPod DL24 provides continuous level measurement with relay control for small to medium tanks up to 3 m:
Hinco Instruments is your authorised Flowline distributor in Perth, WA. Contact us for pricing, availability, and technical support.
