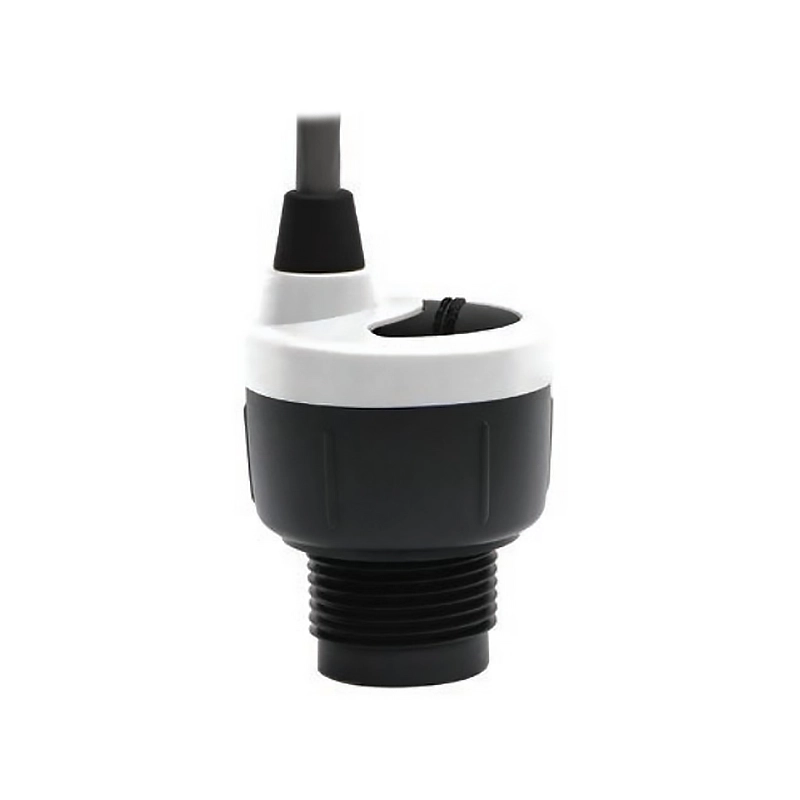

The Flowline EchoPod DL10 Ultrasonic Liquid Level Transmitter measures liquid levels up to 1.25 m (49.2 in) non-contact, with 4–20 mA output and corrosion-resistant design.
The Flowline EchoPod DL10 Ultrasonic Liquid Level Transmitter provides continuous non-contact measurement of liquid levels up to 49.2 in (1.25 m). It delivers a two-wire 4–20 mA signal with reversible or fail-safe output options. Configuration is quick using WebCal® software and a USB adapter. With a narrow 2-inch beam width and a short 2-inch dead band, the DL10 is ideal for small tank applications. The PVDF transducer and rugged polycarbonate housing resist corrosion and handle harsh liquids. Built-in temperature compensation ensures accurate readings in changing conditions.
| Measurement Range | Up to 49.2 in (1.25 m), non-contact |
|---|---|
| Output | 4–20 mA, two-wire; reversible or fail-safe output options |
| Beam Width | 2 in (5 cm) |
| Dead Band | 2 in (5 cm) |
| Transducer Material | PVDF |
| Enclosure | Rugged corrosion-resistant polycarbonate |
| Temperature Compensation | Automatic |
| Configuration | WebCal® software via USB adapter |
The Flowline EchoPod DL10 is designed for continuous non-contact level measurement in small tanks:
Hinco Instruments is your authorised Flowline distributor in Perth, WA. Contact us for pricing, availability, and technical support.
