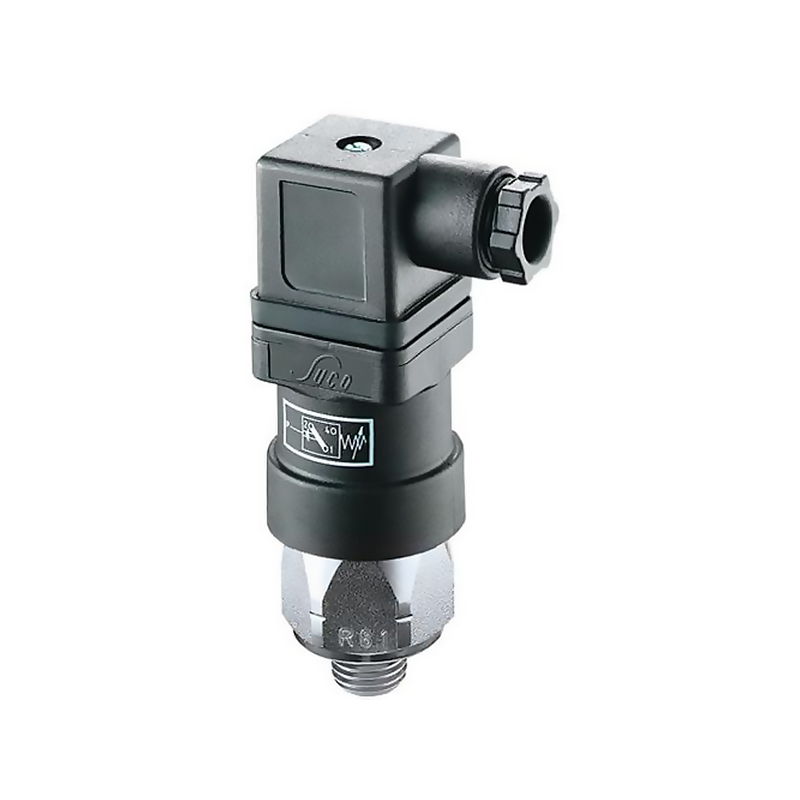

Suco 0184 DIN Socket Pressure Switch with zinc-plated steel body, adjustable 4.35–1,450 psi range, snap-action micro switch, included DIN connector, and overpressure safety up to 5,801 psi.
Designed for harsh industrial and mobile hydraulic applications, the Suco 0184 DIN Socket Pressure Switch features a zinc-plated steel body, snap-action micro switch with silver contacts, and a field-adjustable pressure range from 4.35 to 1,450 psi. It includes a DIN EN 175301 connector for quick wiring and supports overpressure safety up to 5,801 psi (400 bar). Suitable for voltages up to 250V and currents up to 4A resistive, with available seal materials including NBR, EPDM, FKM, and HNBR. Its HEX 27mm compact design offers excellent value and easy installation across a wide range of systems.
| Type | Mechanical pressure switch, snap-action micro switch (silver contacts) |
|---|---|
| Adjustable Pressure Range | 4.35–1,450 psi (0.3–100 bar) |
| Overpressure Safety | Up to 5,801 psi (400 bar) |
| Electrical Connection | DIN EN 175301 connector (included) |
| Electrical Rating | Up to 250 V, up to 4 A resistive |
| Body / Wrench Size | HEX 27 mm, zinc-plated steel |
| Seal Materials | NBR, EPDM, FKM, HNBR |
The Suco 0184 DIN Socket Pressure Switch is designed for harsh industrial and mobile hydraulics:
Hinco Instruments is your authorised Suco distributor in Perth, WA. Contact us for pricing, availability, and technical support.
