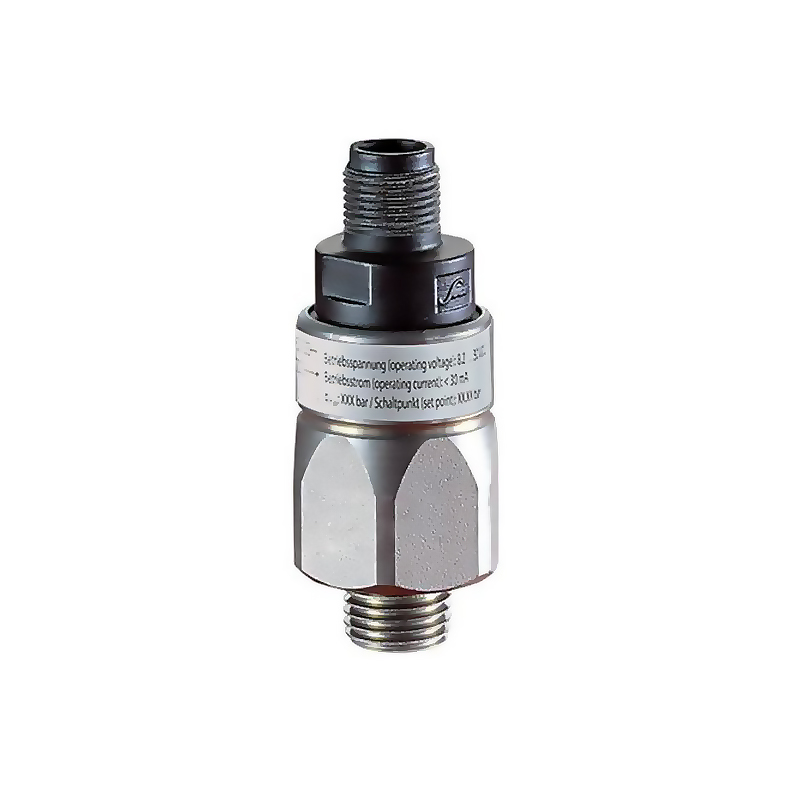

Suco 0122 Connector Pressure Switch with M12x1 DIN EN 61076-2-101-1 connection, zinc-plated steel body, SPST-NO/NC output, and overpressure safety up to 4,350 psi. Compact and IP67/IP6K9K rated for harsh hydraulic and pneumatic applications.
The Suco 0122 Connector Pressure Switch is a compact and durable option for hydraulic, industrial, and pneumatic systems. It features a quick plug-in M12x1 DIN connector and an adjustable pressure range from 1.45 to 725 psi. The switch handles overpressure up to 4,350 psi with ease. Its 24 mm hex body is made from Cr VI-free zinc-plated steel. An IP67/IP6K9K rating means it resists high-pressure washdowns and immersion. Choose SPST-NO or SPST-NC switching. Sealing options include NBR, EPDM, FKM (Viton®), and HNBR.
| Type | Mechanical pressure switch |
|---|---|
| Adjustable Pressure Range | 1.45–725 psi (0.1–50 bar) |
| Overpressure Safety | Up to 4,350 psi (300 bar) |
| Electrical Connection | Plug-in M12x1 connector (DIN EN 61076-2-101-1) |
| Switching Function | SPST-NO or SPST-NC |
| Body / Wrench Size | 24 mm hex, Cr VI-free zinc-plated steel |
| Seal Materials | NBR, EPDM, FKM (Viton®), HNBR |
| Protection | IP67 / IP6K9K |
The Suco 0122 Connector Pressure Switch suits compact hydraulic and pneumatic control tasks:
Hinco Instruments is your authorised Suco distributor in Perth, WA. Contact us for pricing, availability, and technical support.
