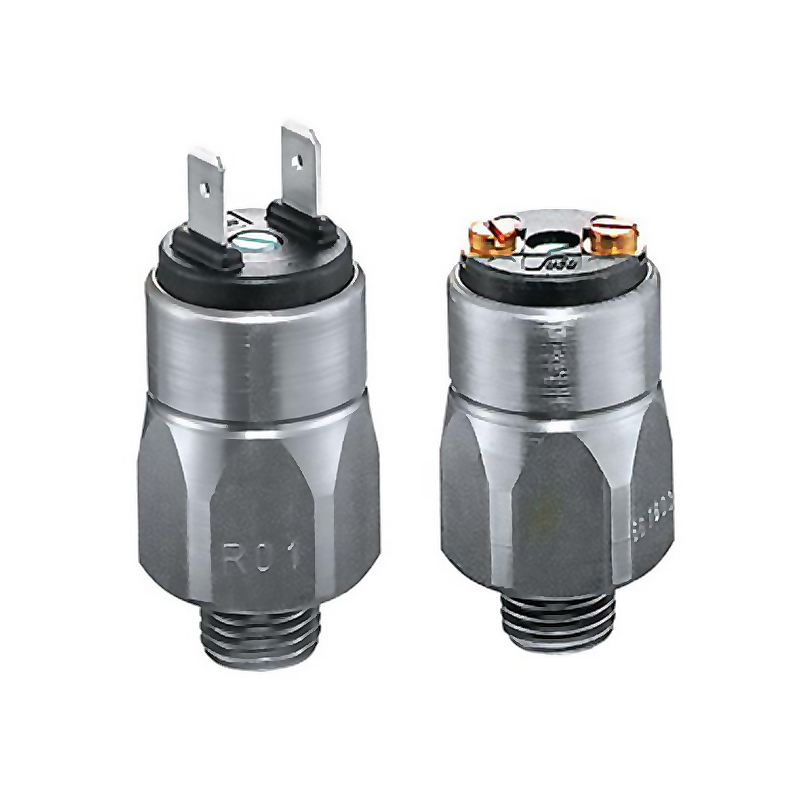

Suco 0166 Pressure Switch with zinc-plated steel body, 1.45–725 psi adjustable range, spade or screw terminals, and overpressure safety up to 4,350 psi for hydraulic and pneumatic systems.
Suco 0166 Pressure Switches are compact and built for demanding hydraulic, pneumatic, and industrial systems. The adjustable pressure range of 1.45 to 725 psi offers flexible use across many applications. With overpressure safety up to 4,350 psi and burst pressure tolerance up to 5,800 psi, they deliver dependable performance in high-pressure environments. The zinc-plated steel body (Cr VI-free) and HEX 24 mm design ensure durability in harsh conditions. Choose from spade or screw terminals to suit your wiring needs. Sealing options include NBR, EPDM, FKM (Viton®), FFKM, and HNBR to match different media. The Suco 0166 Pressure Switches offer a compact, reliable solution with multiple thread and accessory options available.
| Type | Mechanical pressure switch |
|---|---|
| Adjustable Pressure Range | 1.45–725 psi (0.1–50 bar) |
| Overpressure Safety | Up to 4,350 psi (300 bar) |
| Burst Pressure | Up to 5,800 psi (400 bar) |
| Terminals | Spade or screw terminals |
| Body / Wrench Size | HEX 24 mm, Cr VI-free zinc-plated steel |
| Seal Materials | NBR, EPDM, FKM (Viton®), FFKM, HNBR |
| Options | Multiple thread and accessory options |
The Suco 0166 Pressure Switch is built for demanding hydraulic and pneumatic systems:
Hinco Instruments is your authorised Suco distributor in Perth, WA. Contact us for pricing, availability, and technical support.
