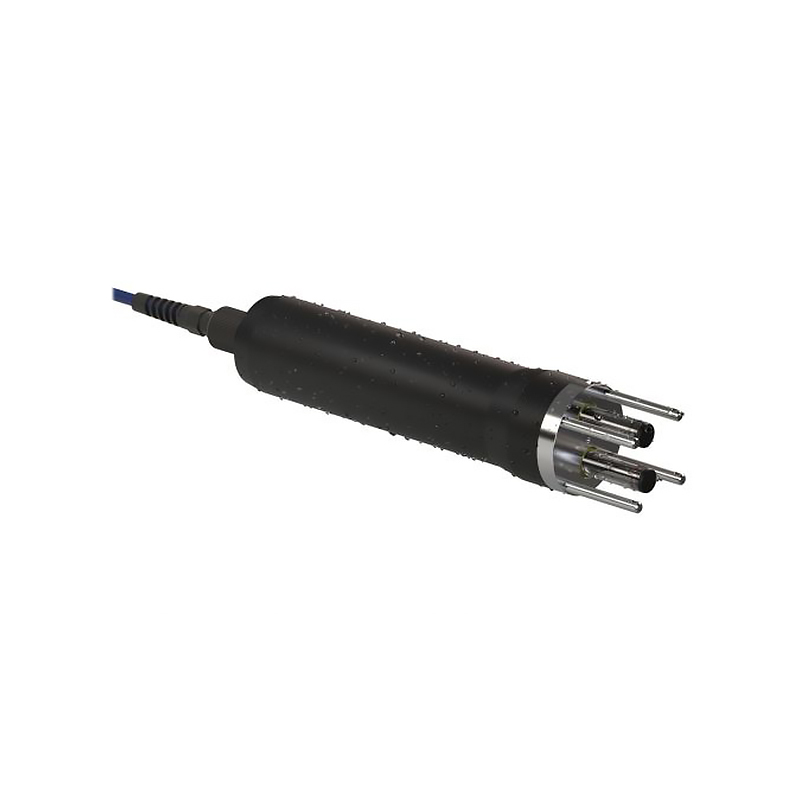

In-Situ TurbiTechw2 HR Suspended Solids Sensor

The In-Situ TurbiTech Suspended Solids & Turbidity Sensors feature automatic self-cleaning, ISO 7027 compliance, and models for a wide range of wastewater and industrial monitoring applications.

The In-Situ TurbiTechw2 HR Suspended Solids Sensors deliver precise monitoring of mixed liquor suspended solids, total suspended solids, and turbidity in wastewater and industrial processes. A solid-state infrared light source ensures stable, accurate readings, while large optical surfaces improve resistance to fouling. The fully automatic self-cleaning system, initiated by the 7300 Monitor (sold separately), reduces maintenance and keeps sensors available for 99.5% of the time in a six-hour cleaning cycle. Choose from LS, LA, or HR models for applications including final effluent, primary influent, activated sludge, return activated sludge, surplus activated sludge, membrane reactors, and batch reactors. ISO 7027 compliance makes the LS version ideal for turbidity monitoring in regulated environments.

Download PDF

Specifications

Measurement Parameters MLSS, TSS, turbidity
Light Source Solid-state infrared (stable, long-life)
Optical Surface Large — improved fouling resistance
Auto-Cleaning Fully automatic (6-hour cycle), 99.5% sensor uptime
Cleaning Initiation Via 7300 Monitor (sold separately)
Available Models LS (low range), LA (mid range), HR (high range)
Standards Compliance ISO 7027 (LS model)
Output 4–20 mA, digital (via 7300 Monitor)

Applications

The In-Situ TurbiTechw2 HR Suspended Solids Sensor covers a wide range of wastewater and industrial monitoring applications:

  • Final effluent TSS monitoring for compliance
  • Primary influent suspended solids measurement
  • Activated sludge MLSS monitoring
  • Return activated sludge (RAS) concentration
  • Surplus activated sludge (SAS) monitoring
  • Membrane bioreactor (MBR) feed concentration
  • Batch reactor monitoring
  • Industrial process suspended solids control

Documents

Hinco Instruments is your authorised Royce Water Technologies distributor in Perth, WA. Contact us for pricing, availability, and technical support.
