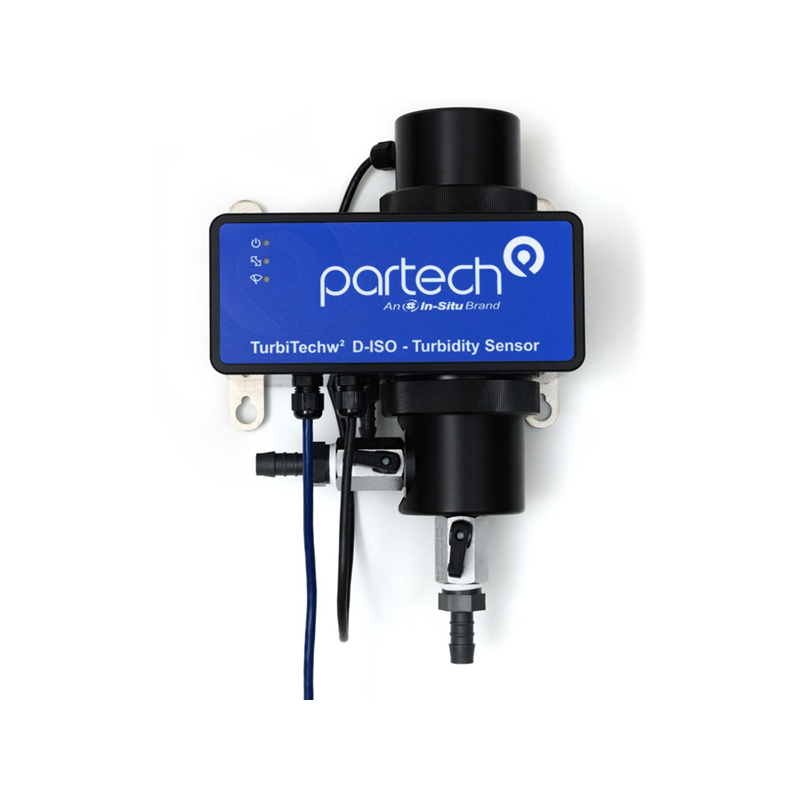

In-Situ TurbiTechw2 D-ISO Turbidity Sensor

The In-Situ TurbiTechw2 D-ISO Turbidity Sensor offers ultra-low back scatter, automatic self-cleaning, and 0.01 NTU sensitivity for precise low-range turbidity monitoring in water treatment applications.

The In-Situ TurbiTechw2 D-ISO Turbidity Sensor sets a new standard for low-range turbidity monitoring in raw water, process control, and final water applications. Designed using over 40 years of sensor expertise and valuable customer feedback, it features ultra-low back scatter detection and a stable zero point by capturing stray light. The automatic self-cleaning mechanism prevents fouling inside and around the chamber, ensuring minimal maintenance and consistent accuracy. Sensitive enough to detect changes of less than 0.01 NTU, the TurbiTechw2 D-ISO Turbidity Sensor uses a global standard light scatter technique for a wider particle size detection range. Ideal for filtered water, filter backwash control, and clarifier supernatant monitoring, it also includes a dry secondary standard for reliable calibration.

Download PDF

Specifications

Measurement Technology ISO 7027 light scatter (global standard)
Sensitivity Detects changes < 0.01 NTU
Zero Point Stable — stray light captured for accurate zero
Auto-Cleaning Automatic — cleans inside and around measurement chamber
Calibration Standard Dry secondary standard supplied
Particle Size Detection Wide range — ISO 7027 technique
Output 4–20 mA, digital (via 7300w2 Monitor)
Experience Basis Over 40 years of sensor development

Applications

The In-Situ TurbiTechw2 D-ISO Turbidity Sensor is optimised for low-range turbidity monitoring in treated water applications:

  • Filtered water turbidity monitoring (post-filter)
  • Filter backwash initiation control
  • Clarifier supernatant quality monitoring
  • Potable water compliance and regulatory reporting
  • Pre-membrane filtration turbidity control
  • Drinking water treatment plant final verification
  • Raw water monitoring at low turbidity levels

Documents

Hinco Instruments is your authorised Royce Water Technologies distributor in Perth, WA. Contact us for pricing, availability, and technical support.
