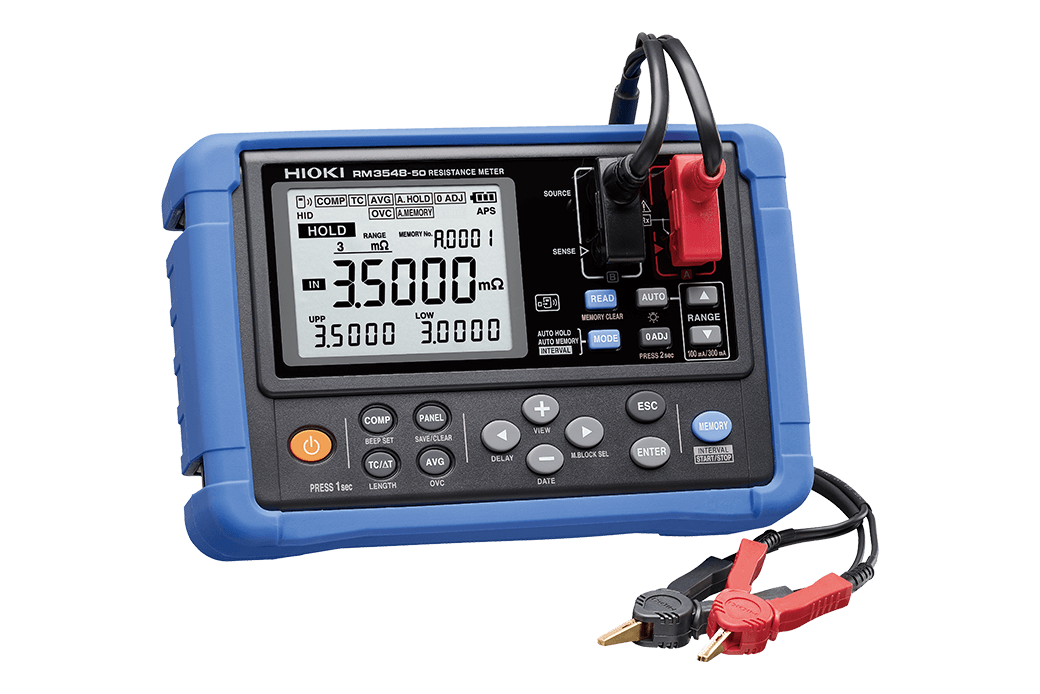

The HIOKI RM3548-50 Resistance Meter measures from 0.1 mΩ to 110 MΩ using 4-terminal Kelvin measurement for accurate low resistance results. Built-in HI/IN/LO comparator judgement supports efficient pass/fail testing in production and maintenance environments.
The HIOKI RM3548-50 resistance meter delivers high-accuracy resistance measurement across an exceptionally wide range — from 0.1 mΩ for low-resistance contact and conductor testing, through to 110 MΩ for component and insulation resistance checks. Four-terminal (Kelvin) measurement eliminates the effect of test lead resistance from results, which is critical when measuring resistances below 1 Ω where lead resistance would otherwise introduce unacceptable error.
The built-in comparator function provides HI / IN / LO judgement against user-defined thresholds, enabling fast and consistent pass/fail decisions during production testing, incoming inspection, and maintenance verification. USB connectivity links the RM3548-50 to a PC for data transfer and documentation — supporting quality management and traceability requirements in industrial measurement and testing environments.
HIOKI instruments are available from Hinco Instruments, Western Australia’s specialist supplier of test and measurement equipment. Our engineering team can assist with product selection, application guidance, and calibration services to support accurate and reliable resistance measurement across mining, industrial, and electrical engineering applications throughout Perth and regional WA. Contact us for pricing and availability.
| Specification | Details |
|---|---|
| Measurement Type | Resistance Meter |
| Resistance Range | 0.1 mΩ to 110 MΩ |
| Measurement Method | 4-terminal Kelvin (for low resistance) |
| Comparator | HI / IN / LO judgement with user-set thresholds |
| Display | Backlit LCD |
| Connectivity | USB |
| Weight | Approx. 450 g |
Download HIOKI RM3548-50 Resistance Meter (PDF)
Download HIOKI RM3548-50 Resistance Meter Manual (PDF)
Download HIOKI RM3548-50 Measurement Lead Selection Guide (PDF)
Hinco Instruments supplies HIOKI test and measurement equipment across Perth and Western Australia. With over 70 years of instrumentation expertise, we also provide professional calibration services to support accurate and reliable measurement performance.
Hinco Instruments is an authorised supplier of HIOKI test and measurement equipment across Perth and Western Australia. We provide professional calibration services and ongoing support to keep your instruments performing to specification. Contact us for pricing and availability.
