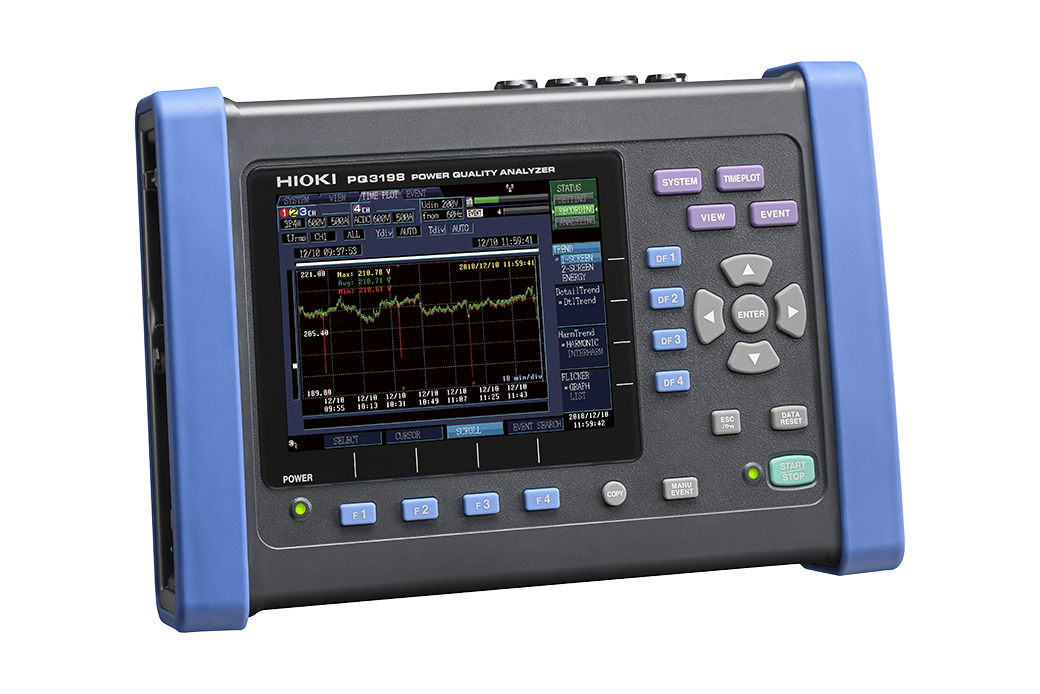

The HIOKI PQ3198-94 is a Class A power quality analyser compliant with IEC 61000-4-30 Ed.3. It records harmonics, flicker, transients, voltage dips, swells, and unbalance on 3-phase systems — supplied as a kit with four current sensors.
The HIOKI PQ3198 is HIOKI’s flagship power quality analyser for investigating supply problems and proving compliance. It meets IEC 61000-4-30 Edition 3 Class A, the highest accuracy class, with gapless continuous recording suitable for regulatory reporting and dispute resolution.
It measures harmonics to the 80th order and supraharmonics to 80 kHz, flicker, unbalance, dips and swells, and captures transients up to 6,000 V at 2 MS/s, with ±0.1% voltage accuracy. The PQ3198-94 kit includes four current sensors, ready for 3-phase surveys. See more test and measurement instruments.
Hinco Instruments supplies HIOKI instruments and offers electrical test equipment calibration from our Canning Vale laboratory, supporting customers across Australia. Contact us for pricing and survey advice.
| Standard | IEC 61000-4-30 Edition 3 Class A |
|---|---|
| Harmonics | Up to 80th order; supraharmonics to 80 kHz |
| Transients | Up to 6,000 V, 2 MS/s sampling |
| Voltage accuracy | ±0.1% of nominal |
| Parameters | Flicker (Pst, Plt), unbalance, dips, swells, interruptions |
| Recording | Gapless continuous recording |
| Kit | PQ3198-94 with four current sensors |
The HIOKI PQ3198 is used for:
For the HIOKI PQ3198 datasheet, pricing and availability, contact Hinco Instruments, your HIOKI supplier in Perth, WA.
