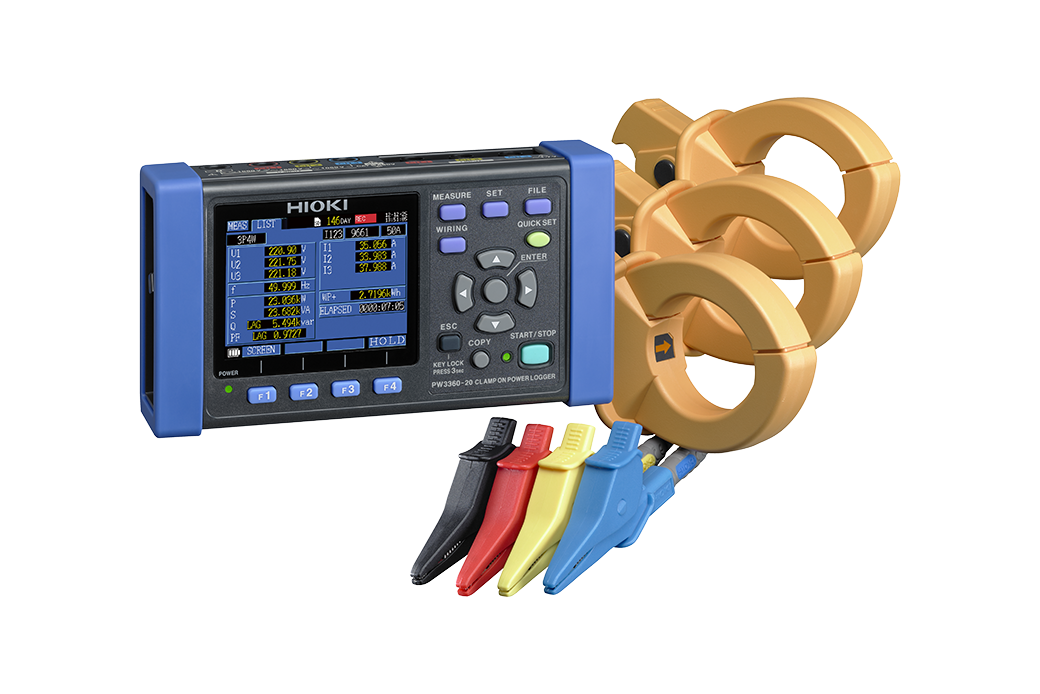

The HIOKI PW3360-20 is a clamp-on 3-phase power logger supplied with 500 A current clamp sensors. It logs active and reactive power, apparent power, and power factor over time — ideal for energy audits and load profiling without circuit interruption.
The HIOKI PW3360-20 power logger is purpose-built for extended energy monitoring and load profiling on 3-phase electrical systems. By clamping non-invasively around existing conductors, it logs power data over hours, days, or weeks without interrupting the electrical supply — making it the right tool for energy audits, demand analysis, and tariff optimisation projects.
This kit includes 500 A clamp sensors that cover the majority of LV distribution feeders and sub-distribution boards in commercial and industrial installations. Logged data is stored on an SD card and transferred to a PC via USB for analysis using HIOKI’s included software. The ability to log power factor alongside active and reactive power gives energy engineers the data they need to identify power factor correction opportunities and verify the performance of capacitor banks as part of electrical energy management programs.
| Specification | Details |
|---|---|
| Measurement Type | 3-Phase Clamp-On Power Logger |
| Voltage Range | Up to 600 V AC (line-to-line) |
| Current Range | Up to 500 A AC (via included clamp sensors) |
| Power Parameters | Active (W), Reactive (VAR), Apparent (VA), Power Factor |
| Data Storage | SD card (extended logging) |
| Connectivity | USB to PC |
| Kit Contents | PW3360-20 logger + 500 A clamp sensors |
| Weight | Approx. 600 g (logger unit) |
Download HIOKI PW3360-20 500 KIT 500 A Power Logger Kit (PDF)
Download HIOKI PW3360-20 500 KIT 500 A Power Logger Kit Manual (PDF)
Hinco Instruments supplies HIOKI test and measurement equipment across Perth and Western Australia. With over 70 years of instrumentation expertise, we also provide professional calibration services to support accurate and reliable measurement performance.
Hinco Instruments is an authorised supplier of HIOKI test and measurement equipment across Perth and Western Australia. We provide professional calibration services and ongoing support to keep your instruments performing to specification. Contact us for pricing and availability.
