Specifications
Key Specifications
| Specification | Details |
|---|---|
| Measurement Type | Phase Rotation Detection |
| Voltage Range | 200 V to 600 V AC |
| Frequency Range | 50/60 Hz |
| Indication | Audible and visual |
| Power Supply | None required (passive) |
| Weight | Approximately 200 g |

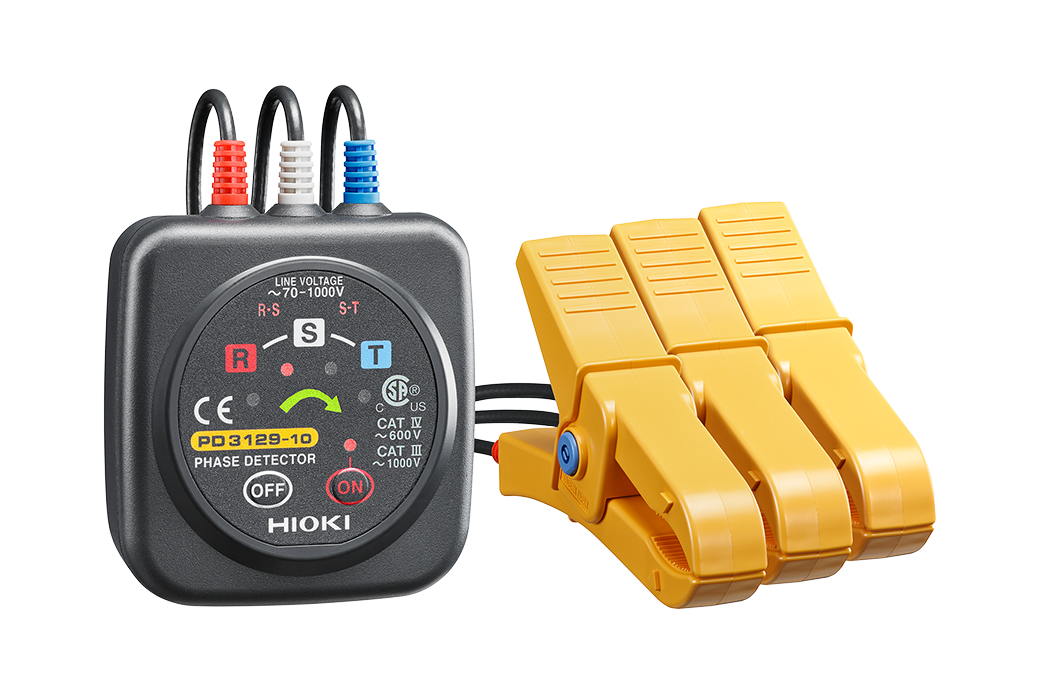

The HIOKI PD3129-10 Phase Detector
HIOKI PD3129-10 Phase Detector is a reliable and portable instrument for industrial testing and measurement applications, designed for field and workshop use.
The HIOKI PD3129-10 Phase Detector is built for reliable performance in industrial testing and measurement environments. Its compact and durable design makes it well suited to field maintenance, installation commissioning and laboratory use across electrical and instrumentation disciplines. Hinco Instruments supplies HIOKI test and measurement equipment throughout Perth and Western Australia, backed by professional calibration and servicing support.
Key Features
- Detects phase rotation and phase sequence in 3-phase systems
- Audible and visual phase rotation indication
- No power supply required — passive operation
- Compatible with 200 V to 600 V AC systems
- Compact, lightweight design for field use
Applications
Typical Applications
- Phase sequence verification before motor commissioning
- 3-phase panel and switchgear testing
- Electrical installation checks
- Field maintenance of rotating machinery
Industries
- Manufacturing and Process Industries
- Mining and Heavy Industry
- Oil and Gas Operations
- Water and Wastewater Utilities
- Power Generation and Utilities
- Instrumentation and Engineering Services
Documents
Technical Documentation
Download HIOKI PD3129-10 Phase Detector (PDF)
Download HIOKI PD3129-10 Phase Detector Manual (PDF)
