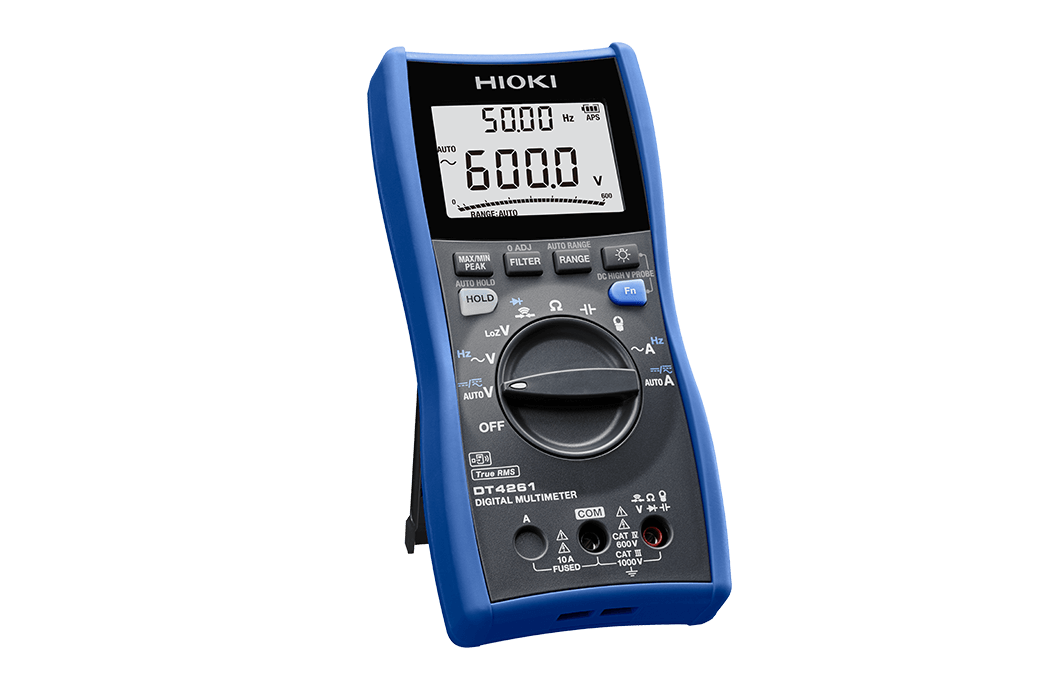

The HIOKI DT4261 is a True RMS digital multimeter rated CAT III 600 V / CAT II 1000 V. It measures AC/DC voltage, current, resistance, capacitance, and frequency — a reliable all-round instrument for field and workshop electrical measurement.
The HIOKI DT4261 digital multimeter is a professional-grade True RMS instrument built for general electrical measurement in industrial, commercial, and laboratory environments. True RMS measurement ensures accurate readings on the non-sinusoidal waveforms generated by inverters, switching power supplies, and other modern electrical loads — where averaging-type meters give misleading results.
Rated CAT III 600 V and CAT II 1000 V, the DT4261 meets the safety requirements for direct measurement on distribution panels, motor control centres, and fixed electrical installations. Its backlit display aids readability in dimly lit switchboard and plant environments. The DT4261 is compatible with the optional HIOKI Z3210 Wireless Adapter for Bluetooth® data transfer to the GENNECT Cross app.
| Specification | Details |
|---|---|
| Measurement Type | True RMS Digital Multimeter |
| AC Voltage Range | Up to 1,000 V AC |
| DC Voltage Range | Up to 1,000 V DC |
| AC/DC Current Range | Up to 10 A |
| Resistance Range | Up to 60 MΩ |
| Capacitance / Frequency | Yes |
| Safety Rating | CAT III 600 V / CAT II 1000 V |
| Display | Backlit LCD |
| Wireless Option | HIOKI Z3210 Bluetooth adapter (optional) |
| Weight | Approx. 310 g |
Download HIOKI DT4261 Digital Multimeter (PDF)
Download HIOKI DT4261 Digital Multimeter Manual (PDF)
Hinco Instruments supplies HIOKI test and measurement equipment across Perth and Western Australia. With over 70 years of instrumentation expertise, we also provide professional calibration services to support accurate and reliable measurement performance.
Hinco Instruments is an authorised supplier of HIOKI test and measurement equipment across Perth and Western Australia. We provide professional calibration services and ongoing support to keep your instruments performing to specification. Contact us for pricing and availability.
