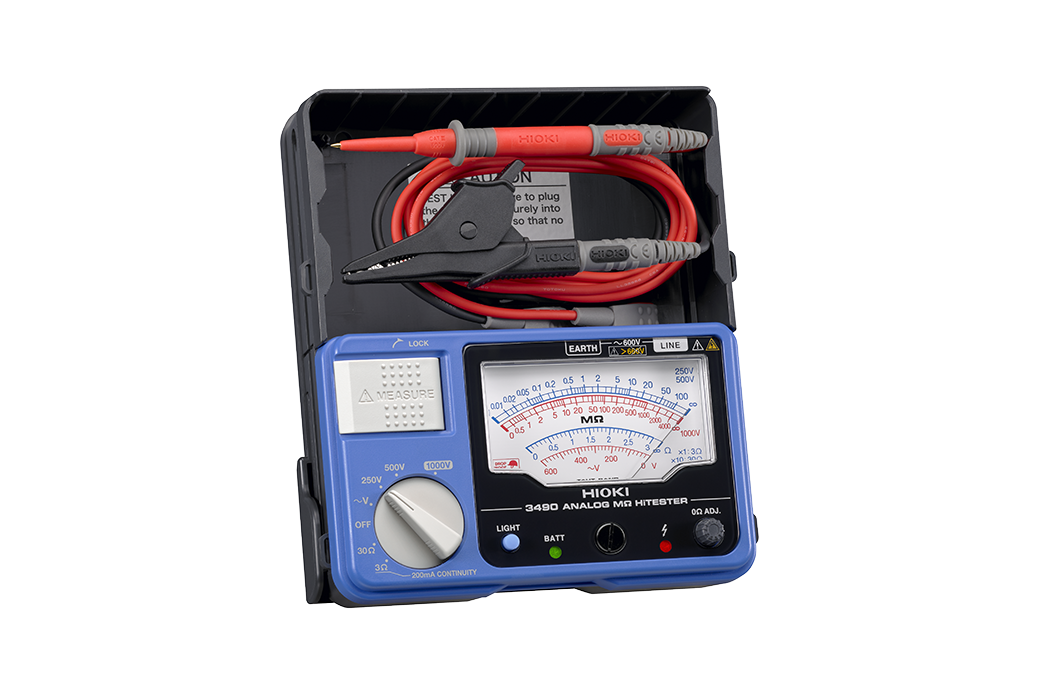

The HIOKI 3490 Analog MΩ Hitester is a robust analog insulation resistance tester with selectable 500 V and 1,000 V test voltages, suitable for fast and reliable insulation checks in the field.
The HIOKI 3490 insulation tester combines a traditional analog meter movement with reliable insulation resistance measurement up to 2,000 MΩ. Selectable test voltages of 500 V and 1,000 V DC make it suitable for testing motors, cables, transformers, and fixed wiring installations to common Australian and international insulation standards. The analog display gives experienced technicians an immediate sense of resistance trends without digital processing delays.
The built-in continuity buzzer speeds up continuity checks between insulation tests, and the compact, battery-powered design keeps it ready for deployment across electrical testing and maintenance tasks wherever they arise.
HIOKI instruments are available from Hinco Instruments, Western Australia’s specialist supplier of test and measurement equipment. Our engineering team can assist with product selection, application guidance, and calibration services to support accurate and reliable insulation testing across mining, industrial, and electrical engineering applications throughout Perth and regional WA. Contact us for pricing and availability.
| Specification | Details |
|---|---|
| Measurement Type | Analog Insulation Resistance |
| Test Voltages | 500 V / 1,000 V DC |
| Resistance Range | Up to 2,000 MΩ |
| Continuity Check | Built-in buzzer |
| Power Supply | 006P 9 V battery × 1 |
| Weight | Approx. 300 g |
Download HIOKI 3490 Analog MΩ Hitester (PDF)
Download HIOKI 3490 Analog MΩ Hitester Manual (PDF)
Hinco Instruments supplies HIOKI test and measurement equipment across Perth and Western Australia. With over 70 years of instrumentation expertise, we also provide professional calibration services to support accurate and reliable measurement performance.
Hinco Instruments is an authorised supplier of HIOKI test and measurement equipment across Perth and Western Australia. We provide professional calibration services and ongoing support to keep your instruments performing to specification. Contact us for pricing and availability.
