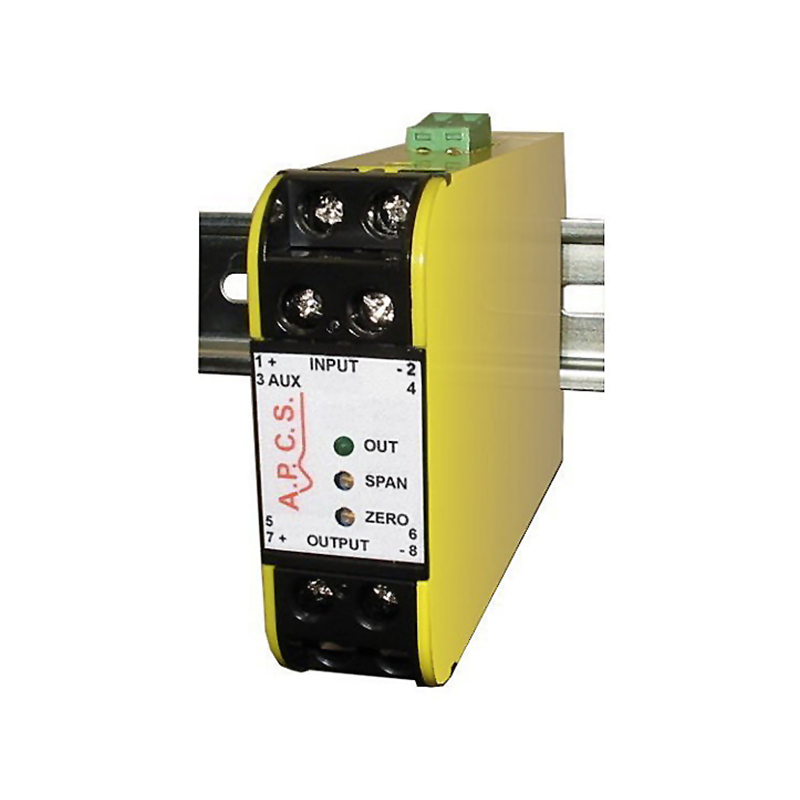

APCS SI282 Signal Isolator with 3-way galvanic isolation, selectable input ranges, auxiliary transmitter supply, and front zero/span calibration for precise signal conversion.
The APCS SI282 Signal Isolator provides true 3-way galvanic isolation up to 2 kV rms, ensuring safe and reliable signal conversion in industrial applications. It delivers an isolated unipolar output signal from a wide range of input types, including process, mV, bipolar, and bipolar mV signals. Range changes are simple with coding plugs, requiring no special tools. The SI282 also includes a 20 VDC/22 mA auxiliary supply to power loop transmitters, reducing the need for external supplies. Final calibration is easy with front-access zero and span trim adjustments. With a rugged DIN-rail mount ABS housing, surge protection, and configurable filter response times, the SI282 offers flexibility, safety, and long-term accuracy. Find the APCS SI282 Signal Isolator at Hinco, Perth, WA for dependable isolation and signal conversion.
| Isolation | 3-way galvanic isolation, up to 2000V rms |
|---|---|
| Input Types | Process, mV, bipolar, and bipolar mV signals |
| Output | Isolated unipolar DC output |
| Range Selection | Coding plugs, no special tools required |
| Auxiliary Supply | 20VDC / 22mA, for powering loop transmitters |
| Calibration | Front-access zero and span trim |
| Filter Response | Configurable filter response time |
| Protection | Surge protection |
| Mounting | 35mm DIN-rail, rugged ABS housing |
The APCS SI282 Signal Isolator provides safe, reliable signal conversion for:
Hinco Instruments is your authorised APCS distributor in Perth, WA. Contact us for pricing, availability, and technical support.
