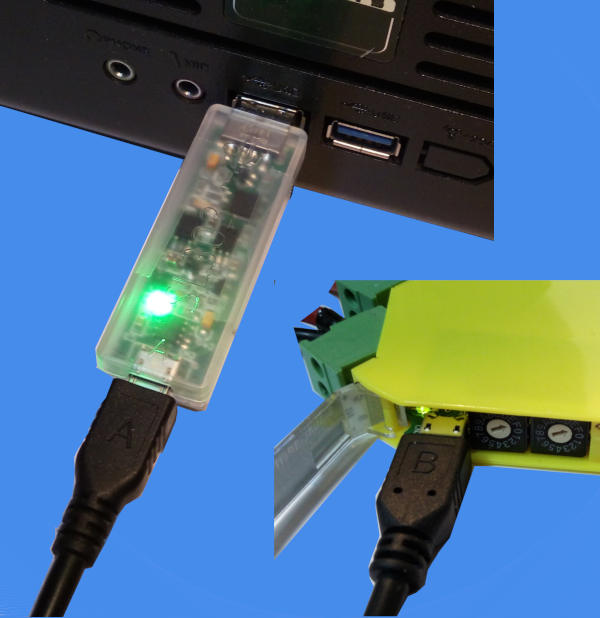

APCS SL303 SL Series USB Isolator

USB Isolator used with the free SL300 software. Required to program and read all of the SL series range.

The SL303 USB Isolator connects provides galvanic isolation between the APCS signal conditioning module and your PC. The SL303 contains level translation logic and signal blocking to prevent confusion in windows hardware detection.

Download PDF

Specifications

Function	USB-to-serial isolator / programming interface
Compatible Software	SL300 configuration software (free)
Compatible Range	All APCS SL-series signal conditioning modules
Isolation	Galvanic isolation between PC and SL-series module
Interface	USB (PC side), SL-series programming port (module side)
Protection	Level translation logic and signal blocking, prevents Windows hardware-detection conflicts
Mounting/Use	Portable inline unit for use with DIN-rail mounted SL-series modules
Power Supply	Contact Hinco for specifications

Applications

The APCS SL303 USB Isolator is required to program and read the SL series signal conditioning range, and is used for:

Programming and configuring SL-series signal conditioners (SL340, SL350, SL332, etc.)
Field commissioning of DIN-rail isolators/transmitters without opening enclosures
Isolating a PC or laptop from live process signal circuits during configuration
Reading back configuration and calibration settings from SL-series modules
Preventing Windows USB hardware-detection conflicts when connecting SL-series devices
Protecting laptops from transient signals on the process side during commissioning
Supporting maintenance technicians re-ranging installed SL-series transmitters in the field
Enabling diagnostics of SL-series module configuration via SL300 software
