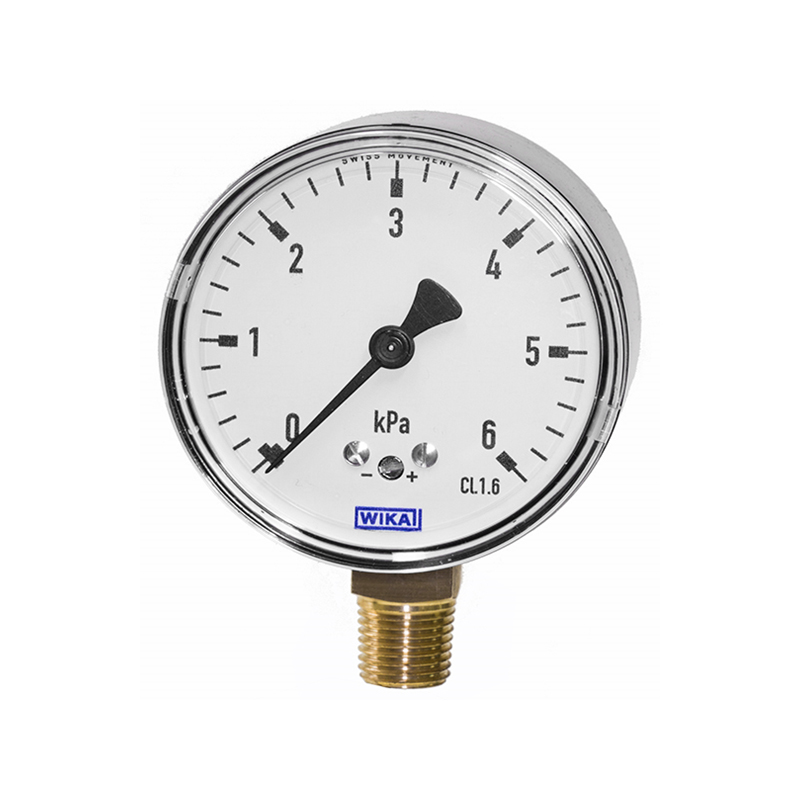

The Wika 611.10 Capsule Pressure Gauge measures pressure for a variety of environments. Available in copper alloy or stainless steel, with dial sizes of 50mm and 63mm.
The WIKA 611.10 is a low-pressure capsule gauge designed for the accurate measurement of very low pressures, vacuum, and differential pressure of gaseous, dry, non-aggressive media. Using a proven capsule measuring element rather than a Bourdon tube, the 611.10 is suited to pressure ranges that standard Bourdon gauges cannot accurately measure.
Available in 50mm and 63mm nominal sizes with accuracy of ±1.6% full scale, the 611.10 features a steel case, copper alloy process connection, front zero adjustment, and modular design allowing a wide range of scale ranges and connection configurations. Meets EN 837-3.
Hinco Instruments is the authorised WIKA distributor in Perth, supplying customers across Australia, with pressure gauge calibration in our Canning Vale laboratory. Contact us for ranges and pricing.
Browse the full WIKA range at Hinco or contact us about low-pressure measurement requirements.
| Nominal Sizes | 50mm (2″), 63mm (2½″) |
|---|---|
| Measuring Element | Capsule |
| Case Material | Steel (black lacquered) |
| Wetted Parts | Copper alloy |
| Accuracy | ±1.6% full scale value |
| Scale Ranges | From 0–10 InWC (25 mbar) to 0–250 InWC (600 mbar) |
| Process Connection | Centre back or lower |
| Zero Adjustment | Front-mounted |
| Standard | EN 837-3 |
The WIKA 611.10 capsule gauge is specifically designed for low-pressure applications including:
Hinco Instruments is your authorised WIKA distributor in Perth, WA. Contact us for pricing and availability.
