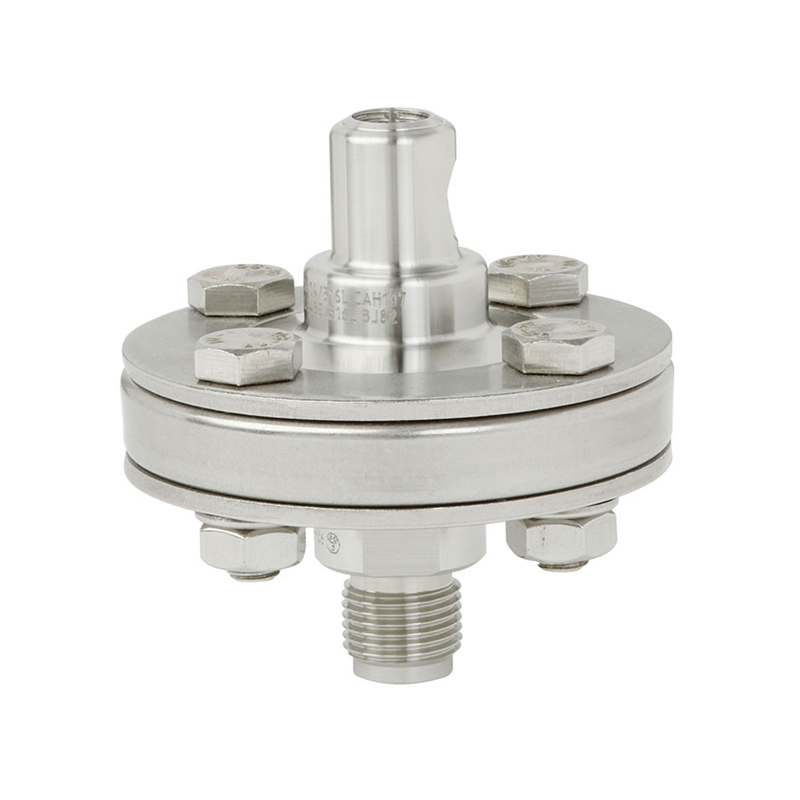

Wika 990.10 Diaphragm Seal Threaded Connection

The WIKA 990.10 is a diaphragm seal with threaded process connection, designed to isolate pressure gauges, transmitters, and switches from aggressive, viscous, hot, or contaminating process media. By separating the measuring instrument from direct contact with the process fluid, the 990.10 extends instrument life and enables measurement in applications that would otherwise damage or clog standard instruments.

The 990.10 uses a flexible diaphragm to transmit process pressure to the fill fluid, which in turn actuates the connected instrument. Threaded process connections are available in a wide range of materials and sizes to suit specific process conditions and media compatibility requirements.

Hinco Instruments supplies WIKA diaphragm seals in Perth and Western Australia and can advise on the correct seal, fill fluid, and instrument combination for your application.

Key Features of the WIKA 990.10 Diaphragm Seal

• Threaded process connection for easy installation
• Isolates instrument from aggressive, viscous, or hot media
• Wide range of wetted material options
• Compatible with WIKA gauges, transmitters, and switches
• Multiple fill fluid options for temperature extremes
• Suitable for hygienic and sanitary applications

Browse all pressure instruments at Hinco or contact us to discuss your diaphragm seal requirements.
