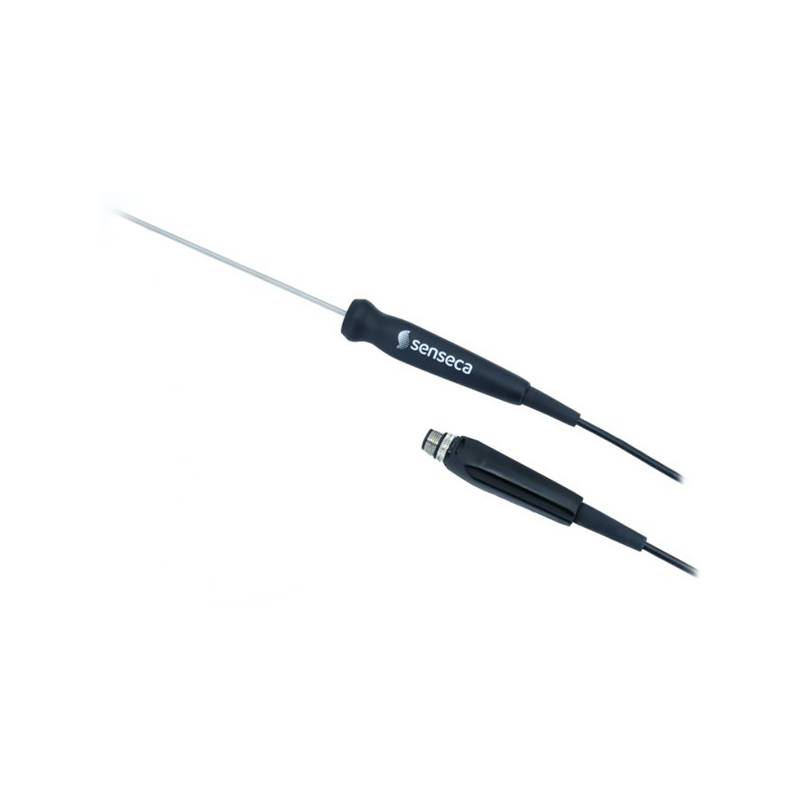

Senseca DX115 Digital Pt100 Probe

Senseca DX115 Digital Pt100 Probe delivers precise immersion temperature measurements with 4-wire design, calibration storage, and optional DAkkS/ACCREDIA certification.

The Senseca DX115 Digital Pt100 Probe is a high-precision immersion probe for PRO D01 and PRO D05 handheld meters. It provides accurate Pt100 temperature measurements with factory calibration, so it is ready to use right away. Calibration data is stored inside the probe, allowing quick replacement without recalibration.
The DX115 uses integrated electronics in the connector body to reduce temperature effects. It combines 4-wire technology and thermo-voltage compensation for stable accuracy. Users can adjust the probe with offset and slope settings or by defining R0 and Callendar-Van Dusen parameters. Optional DAkkS/ACCREDIA certification is available for applications that require certified accuracy. Supplied with 1, 2, or 5 m cables and a 4-pin M12 connector, the DX115 ensures a secure and reliable connection. Find the Senseca DX115 Digital Pt100 Probe at Hinco, Perth, WA for professional temperature measurement.
Download PDF

Specifications

Sensor Pt100, 4-wire with thermo-voltage compensation
Probe Type Digital immersion probe for PRO D01 / PRO D05 meters
Calibration Factory calibrated; calibration data stored in the probe
Adjustment Offset and slope, or R0 and Callendar-Van Dusen parameters
Electronics Integrated in connector body to reduce temperature effects
Cable Lengths 1, 2, or 5 m
Connector 4-pin M12
Certification Optional DAkkS/ACCREDIA calibration certificate

Applications

The Senseca DX115 Digital Pt100 Probe delivers reference-grade immersion temperature measurement:

  • Reference temperature measurement in calibration laboratories
  • Pharmaceutical and food process temperature verification
  • Liquid bath and autoclave temperature checks
  • Quality control in manufacturing processes
  • Swap-and-go probe replacement without recalibration in the field
  • Applications requiring certified accuracy (DAkkS/ACCREDIA option)

Documents

Hinco Instruments is your authorised Senseca (prev. Delta Ohm) distributor in Perth, WA. Contact us for pricing, availability, and technical support.
