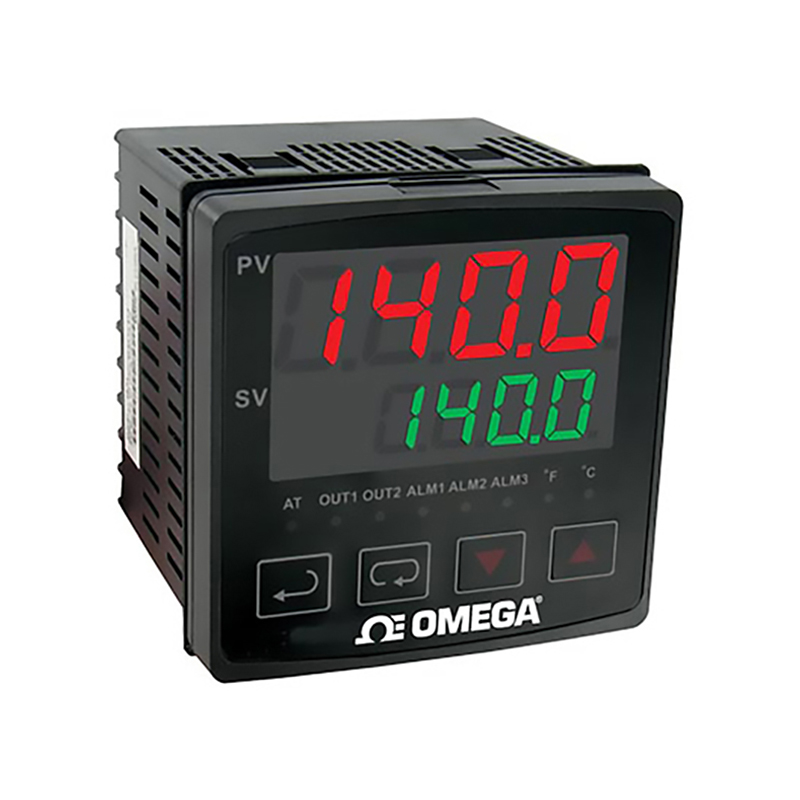

DwyerOmega CN7200 Series Temperature-Process Controllers
The DwyerOmega CN7200 Series Temperature-Process Controllers provide dual outputs, PID control, ramp/soak functions, and clear dual LED displays, with an IP66-rated front panel for tough environments.
The DwyerOmega CN7200 Series Temperature-Process Controllers, available from Hinco, Perth, WA, deliver accurate control for temperature and process applications. These ¼ DIN controllers accept thermocouple, RTD, current, or voltage inputs and provide dual outputs for flexible operation. Output options include relay, DC pulse, current, or linear voltage, supporting ON/OFF, PID, auto-tuning, or manual tuning control. The CN7200 Series Temperature-Process Controllers offer up to 64 ramp/soak actions for advanced process control. Two alarm outputs are included, with the option to configure a third alarm. Users can choose from 13 preprogrammed alarm functions. Dual LED displays clearly show process and setpoint values, while an IP66-rated front panel ensures durability in demanding environments.
