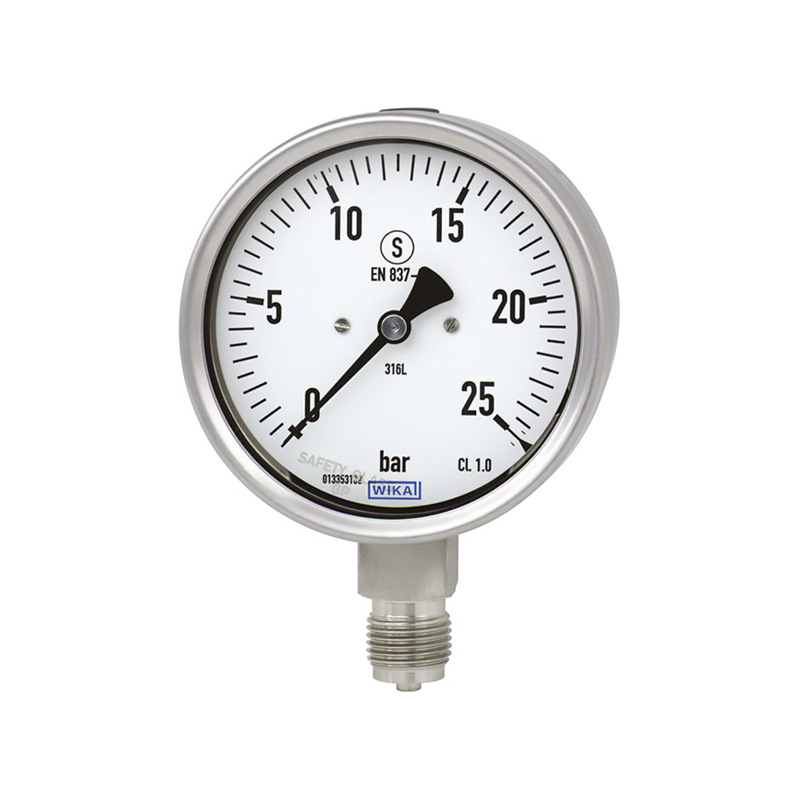

Wika 232.30 Bourdon Tube Pressure Gauge

The WIKA 232.30 is a stainless steel Bourdon tube pressure gauge designed for process industry applications where corrosion resistance and reliable pressure measurement are essential. With stainless steel case and wetted parts, the 232.30 is suited to aggressive media, outdoor installations, and environments where copper alloy wetted parts are not acceptable.

Available in dial sizes of 63mm, 100mm, and 160mm, the 232.30 covers a wide range of pressure measurement requirements with accuracy to class 1.6. The centre back or lower process connection options provide flexibility for panel and pipework mounting.

Hinco Instruments is the authorised WIKA distributor in Perth and Western Australia, supplying WIKA pressure gauges and providing NATA-accredited calibration services from our Canning Vale laboratory.

Key Features of the WIKA 232.30 Pressure Gauge

• All-stainless steel case and wetted parts
• Dial sizes: 63mm, 100mm, 160mm
• Accuracy class 1.6
• Centre back or lower process connection
• Suitable for aggressive and corrosive media
• Meets EN 837-1

See also the WIKA 213.53 liquid-filled version for high-vibration applications, or browse all pressure instruments at Hinco.
