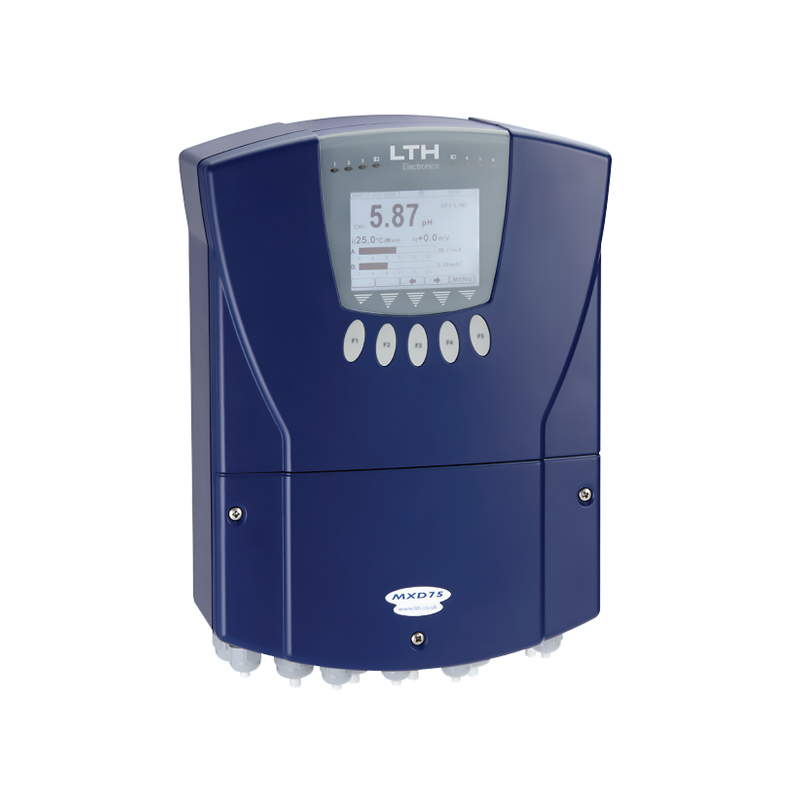

The LTH Electronics MXD75 Multi Parameter Process Monitor from the MXD70 Series delivers flexible measurements, expandable outputs, and advanced features for water treatment and industrial applications.
The LTH Electronics MXD75 Multi Parameter Process Monitor is part of the innovative MXD70 Series, designed for flexible, modular process measurement. This IP66 surface- or pipe-mount version features a 3.75 inch QVGA backlit LCD for clear readings of parameters such as pH, dissolved oxygen, turbidity, conductivity and suspended solids, and can display up to three parameters together with temperature.
Modularity is central to the MXD75: plug-and-play card detection makes it easy to add or change measurement inputs as requirements evolve, protecting your investment over time. It includes two relay outputs, expandable to six, and up to six isolated 4-20 mA current outputs, giving ample capacity for control and signalling. Modbus RS485 communications, on-board data logging, live trending and an SD card interface for configuration backup round out a genuinely capable process instrument, all within a wide -20 °C to +50 °C operating range.
The MXD75 is ideal for water treatment, environmental monitoring, chemical processing, food and beverage, and pharmaceutical applications. Hinco Instruments is your authorised LTH Electronics distributor in Perth, WA — contact us for configuration, pricing and technical support.
| Type | Multi-parameter process monitor (MXD70 Series) |
|---|---|
| Mounting | IP66 surface or pipe mount |
| Display | 3.75 inch QVGA backlit LCD |
| Parameters | pH, dissolved oxygen, turbidity, conductivity, suspended solids and more |
| Simultaneous | Up to 3 parameters plus temperature |
| Expansion | Plug-and-play card detection |
| Relays | 2, expandable to 6 |
| Current Outputs | Up to 6 isolated 4-20 mA |
| Communications | Modbus RS485; data logging, live trending, SD backup |
| Operating Temperature | -20 to +50 °C |
The LTH Electronics MXD75 multi-parameter monitor suits demanding water and process duties:
Hinco Instruments is your authorised Royce Water Technologies distributor in Perth, WA. Contact us for pricing, availability, and technical support.
