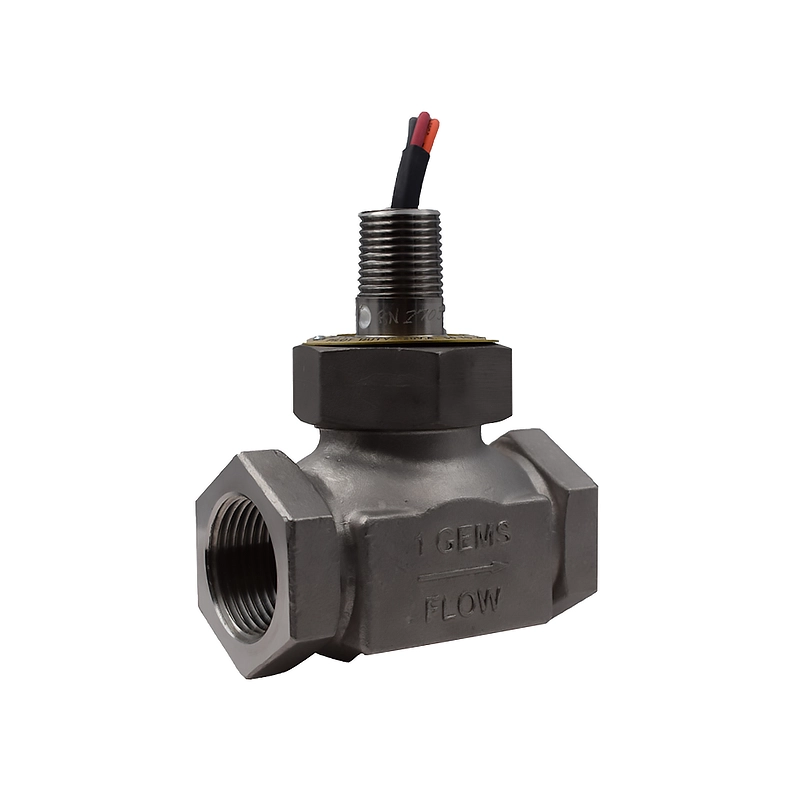

The Gems FS-200 Series Flow Switch deliver 1% repeatability for accurate flow detection. Built in bronze or stainless steel, they monitor flow in lubrication, cooling, and process systems. The FS-200 Adjustable Series, including the Shuttle Type Alloy Flow Switch, adds versatile external adjustability.
The Gems FS-200 Series is a shuttle-type flow switch that signals when flow in a line drops below, or rises above, its set point. A magnet in the shuttle operates a hermetically sealed reed switch, giving 1% repeatability and long service life in high-volume systems.
Bodies are available in bronze or stainless steel, with fixed settings or external adjustment across a defined range, including the Shuttle Type Alloy Flow Switch. Typical uses are lubrication circuits, cooling water, machine tool coolant, chilled-water loops and pump protection. Ranges and connections are listed in the FS-200 datasheet.
Hinco Instruments supplies Gems sensors and controls from Canning Vale, supporting customers across Australia. Contact us for pricing and help choosing a setting.
| Sensing Method | Shuttle type with reed switch |
|---|---|
| Repeatability | 1% |
| Switch Element | SPST reed |
| Body Material | Bronze or stainless steel |
| Setting | Fixed or externally adjustable |
| Media | Water and oil |
| Service Life | Long-life, high-volume duty |
| Variants | Includes Shuttle Type Alloy Flow Switch |
The Gems FS-200 Series Flow Switch offers fixed or adjustable settings for monitoring improper flow in high-volume systems:
Hinco Instruments is your authorised Gems Sensors & Controls distributor in Perth, WA. Contact us for pricing, availability, and technical support.
