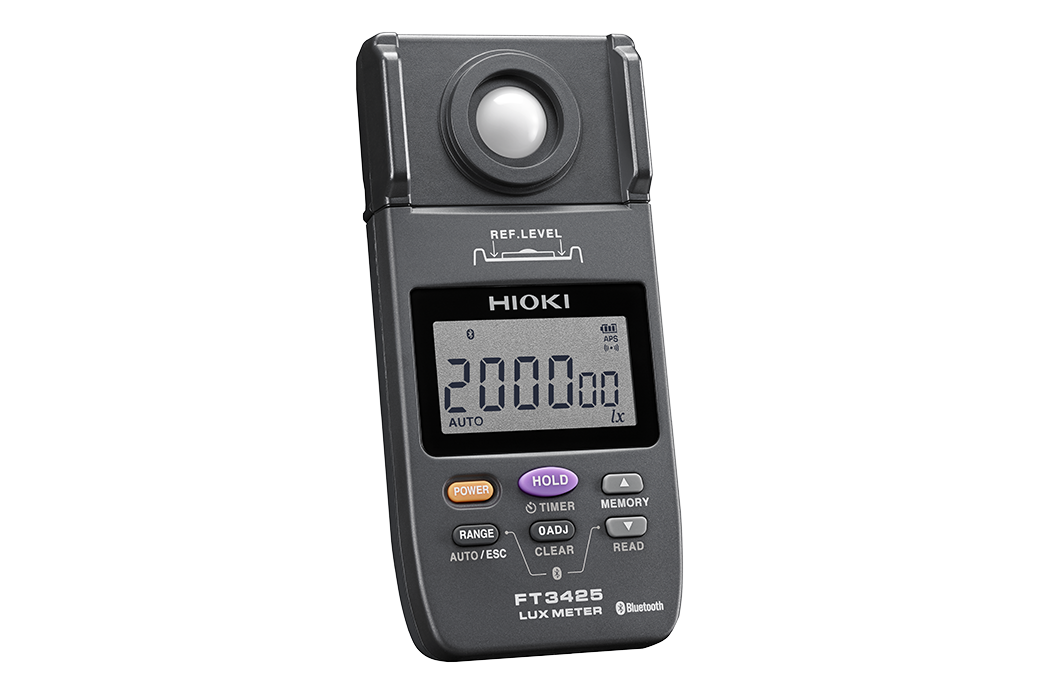

The HIOKI FT3425 Lux Meter measures illuminance from 0 to 200,000 lx with built-in Bluetooth for wireless data logging via the HIOKI Gennect One app — ideal for lighting compliance surveys and energy audits.
The HIOKI FT3425 lux meter is designed for professionals conducting lighting assessments, compliance surveys, and energy audits in commercial, industrial, and outdoor environments. Its wide measurement range of 0 to 200,000 lx covers everything from dimly lit corridors to high-bay industrial areas and outdoor spaces. The built-in Bluetooth connects directly to the HIOKI Gennect One app, enabling wireless data logging and report generation without manual note-taking.
The cosine-corrected sensor provides spectral response closely matching the human eye, ensuring accurate illuminance readings across a broad range of light sources. This makes the FT3425 suitable for compliance testing against Australian lighting standards (AS/NZS 1680) and for verifying LED retrofit projects through test and measurement in the field.
HIOKI instruments are available from Hinco Instruments, Western Australia’s specialist supplier of test and measurement equipment. Our engineering team can assist with product selection, application guidance, and calibration services to support accurate and reliable illuminance measurement across mining, industrial, and electrical engineering applications throughout Perth and regional WA. Contact us for pricing and availability.
| Specification | Details |
|---|---|
| Measurement Type | Illuminance (Lux) |
| Measurement Range | 0.00 lx to 200,000 lx |
| Accuracy | ±3% rdg ±6 dgt |
| Wireless | Built-in Bluetooth |
| App Compatibility | HIOKI Gennect One (iOS and Android) |
| Power Supply | AA batteries × 2 |
| Weight | Approx. 130 g |
Download HIOKI FT3425 Lux Meter with Built-In Bluetooth (PDF)
Download HIOKI FT3425 Lux Meter with Built-In Bluetooth Manual (Japanese/English) (PDF)
Hinco Instruments supplies HIOKI test and measurement equipment across Perth and Western Australia. With over 70 years of instrumentation expertise, we also provide professional calibration services to support accurate and reliable measurement performance.
Hinco Instruments is an authorised supplier of HIOKI test and measurement equipment across Perth and Western Australia. We provide professional calibration services and ongoing support to keep your instruments performing to specification. Contact us for pricing and availability.
