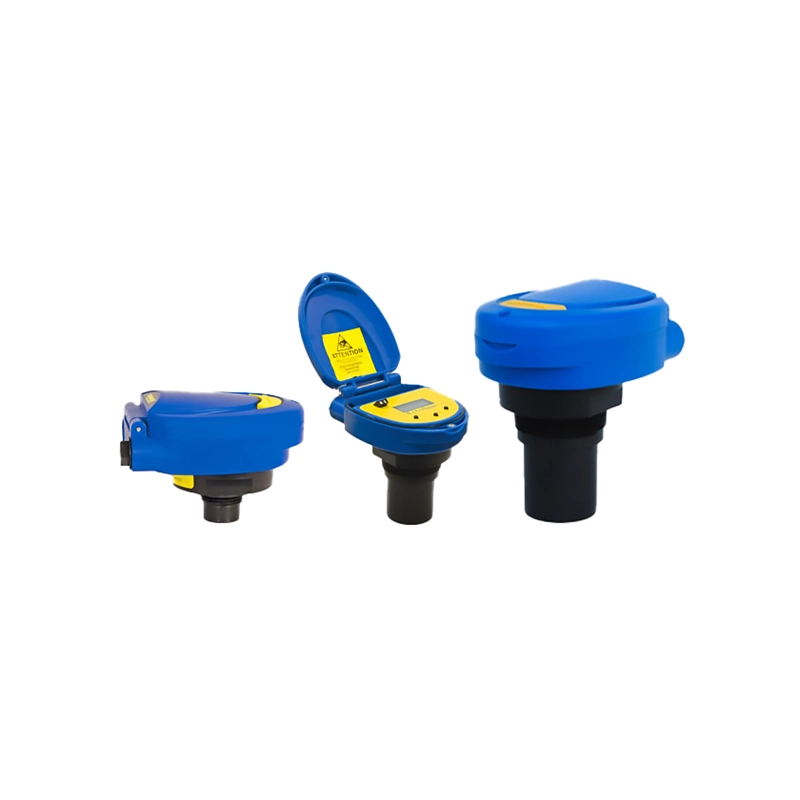

The Flowline EchoSpan LU80-84 Ultrasonic Liquid Level Transmitter measures liquid level non-contact up to 10 m with 4–20 mA output, push-button display, and rugged construction ideal for harsh liquids.
| Measurement Range | Up to 32.8 ft (10 m), non-contact |
|---|---|
| Output | 4–20 mA, two-wire; fail-safe and output inversion options |
| Display | Push-button display module; reads in inches, centimetres or percentage |
| Beam Width | 2–3 in (5–7.6 cm) |
| Transducer Material | PVDF |
| Enclosure | NEMA 4X polycarbonate |
| Temperature Compensation | Automatic |
| Suitable Media | Corrosive, sticky or waste liquids |
The Flowline EchoSpan LU80-84 is designed for mid-range level measurement of corrosive and difficult liquids:
Hinco Instruments is your authorised Flowline distributor in Perth, WA. Contact us for pricing, availability, and technical support.
