Lutron four-function voltage/current calibrator that sources and measures 0–24 mA, outputs DC millivolts and powers two-wire loops.

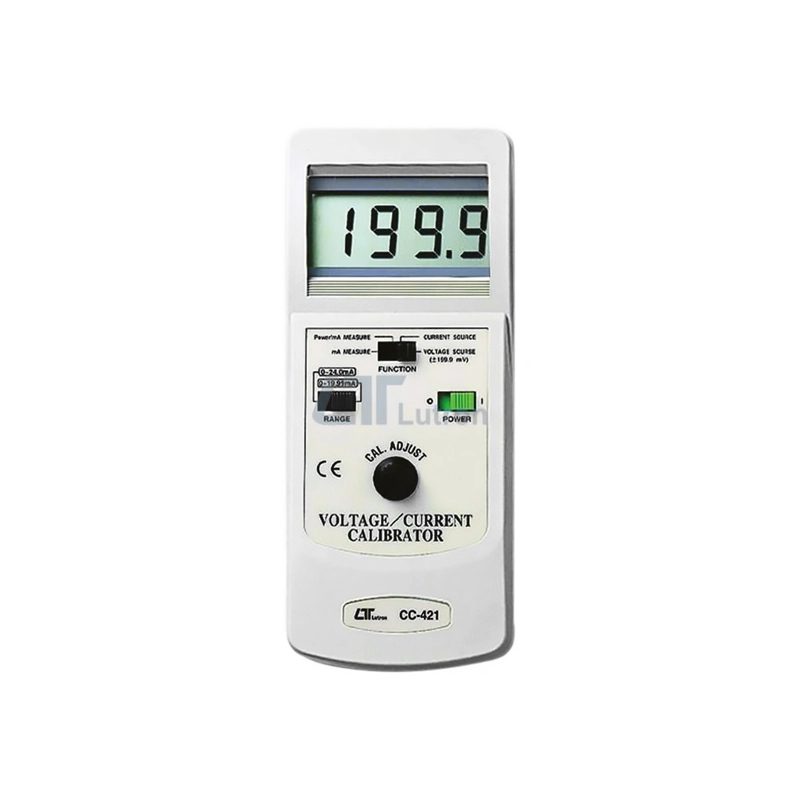

The Lutron CC-421 is a compact loop calibrator that packs four instruments into one hand-held tool. For technicians commissioning or troubleshooting process loops, it removes the need to carry separate sources and meters into the field.
The CC-421 can generate a precise milliamp signal to drive an indicator, read back the current a transmitter is producing, output DC millivolts, and supply loop power to two-wire devices – everything needed to prove a 4–20 mA loop from one instrument.
Hinco stocks the CC-421 for Perth process and instrumentation teams. Contact us for pricing and availability.
| Type | Four-function voltage/current calibrator |
|---|---|
| Current Source & Measure | 0 to 24 mA |
| Voltage Output | DC millivolt levels |
| Loop Power | Supplies two-wire loops |
| Load Capability | Up to 500 Ω |
| Functions | Source, measure, mV output, loop power |
| Display | LCD |
| Power | DC battery |
The Lutron CC-421 is suited to a range of field and workplace tasks:
Hinco Instruments is your authorised Lutron test & measurement distributor in Perth, WA. Contact us for pricing, stock and technical support.
